Pedal force sensor

Description
Technical index
Application

The pedal force is related to the driver’s fatigue. In order to quantify the load on the pedal, NE has specially developed the NE-PF1200 pedal force sensor for braking performance testing, ABS testing, and pedal force testing. Designed to increase friction when pedaling. The pedal force structure design fully considers the center and non-center force loads. The sensor is adapted to the pedals of various mainstream models, with various installation methods, easy installation and firm installation.

Main feature:

●Support dynamic and static force measurement

●Small size, light weight, thin thickness, large contact area with the forefoot

●High rigidity

●Dimple anti-slip design

●Easy to disassemble

Data download

	NE-PF1200
Range	1200N
Comprehensive accuracy	±0.3%FS
Zero temperature coefficient	±0.1% FS /10℃
Output temperature coefficient	±0.1% FS /10℃
Non-linear error	±0.1% FS
Hysteresis error	±0.1% FS
Temperature compensation range	-20～50℃
Creep and creep recovery	±0.1% FS
Insulation resistance	5000MΩ
Operating temperature	-20～70℃
Storage temperature	-40～85℃
Safety overload	120%

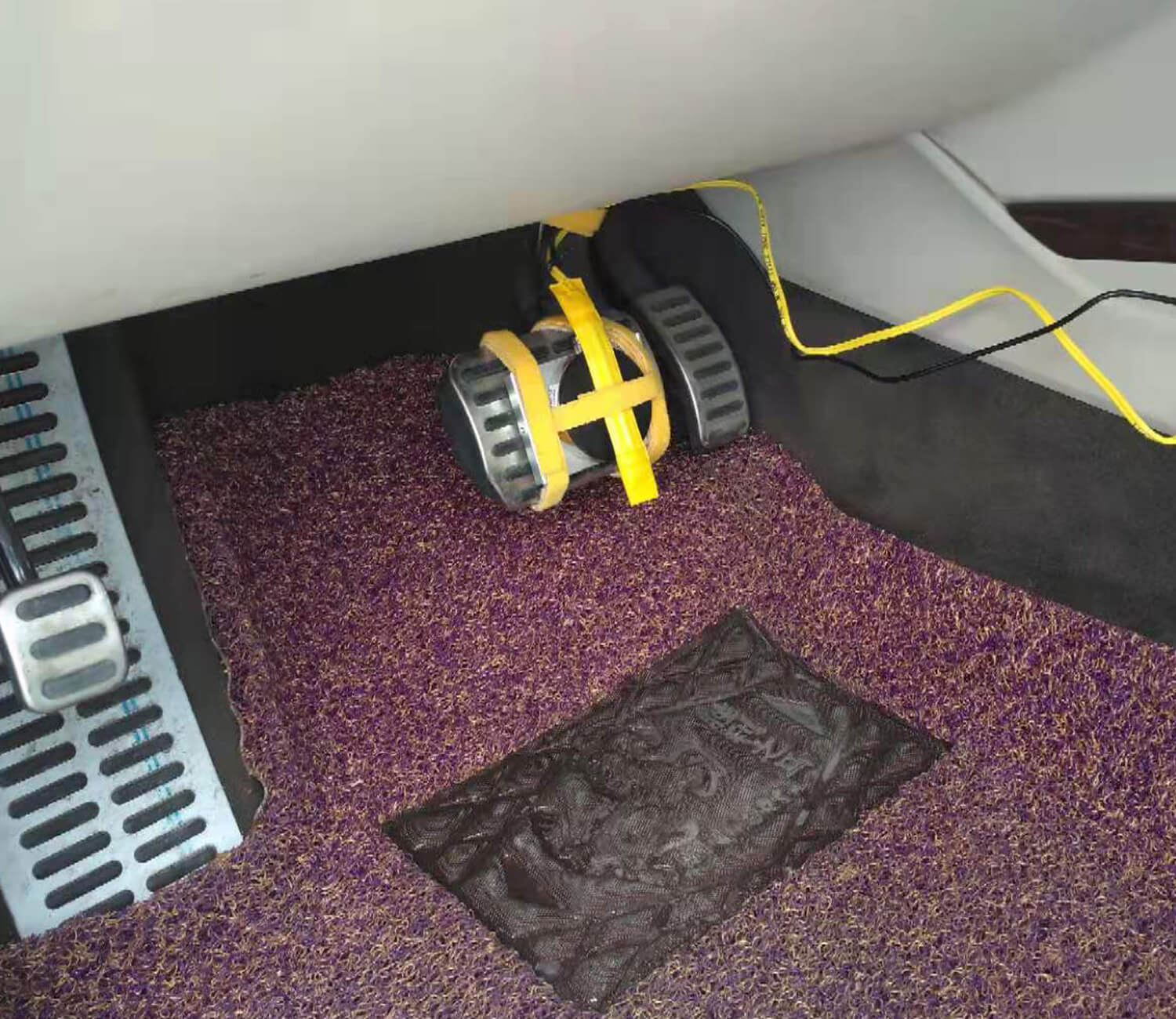

Installation method	Can be installed horizontally, vertically, 45°, suitable for various pedals
Lead wire length	2.5m
Dimensions LWH	67.66mm(L)60mm(W)18.7mm(H)
Weight	About 252g
