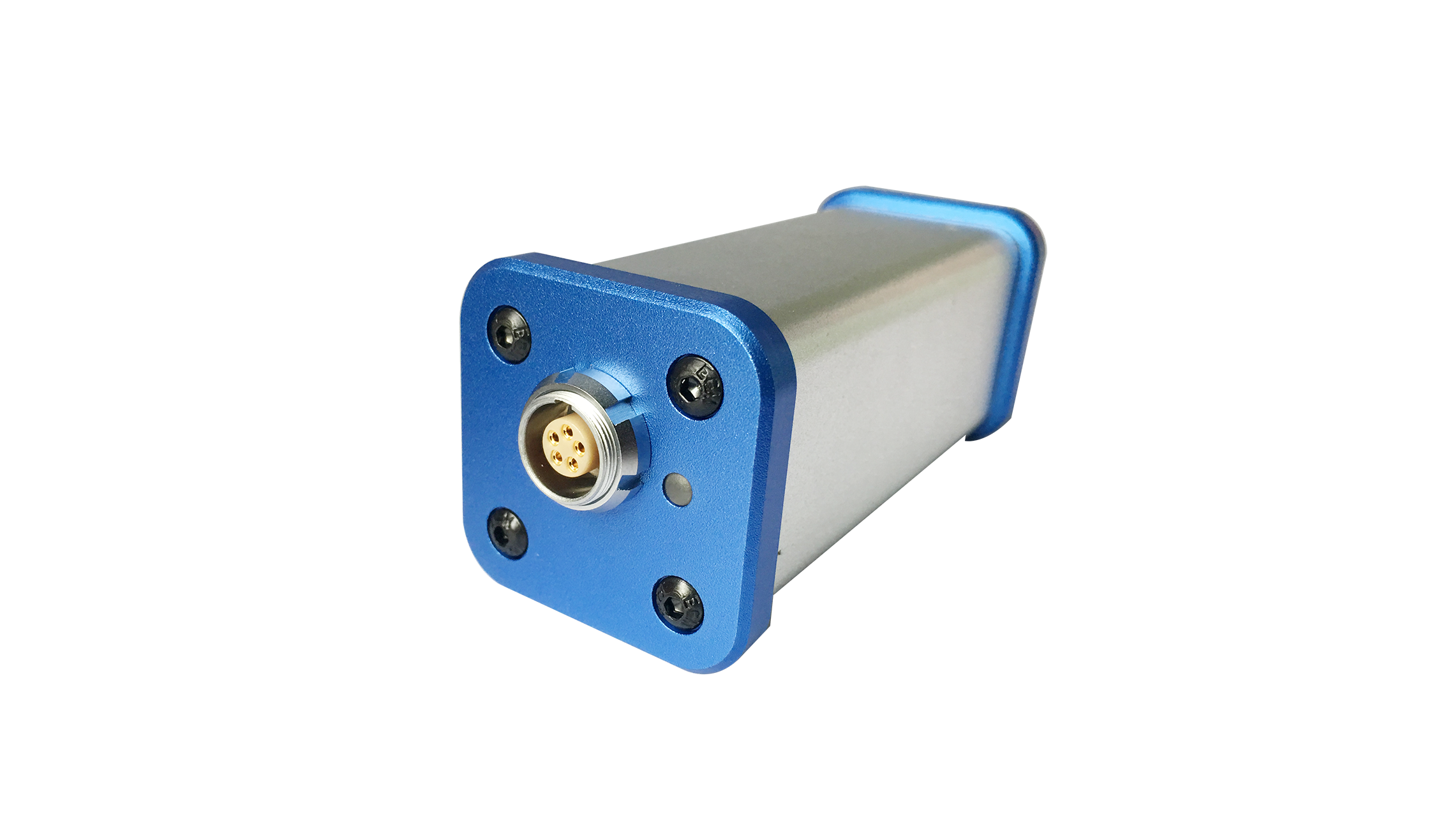

NE-SA01 strain amplifier

NE-SA01 strain amplifier
  • Description
  • Technical index

The NE-SA01 strain amplifier can acquire and amplify the weak signals output by the dynamic and static strain bridges. If it is equipped with different types of strain sensors, it can complete the physical quantities such as force pressure, torque, load, temperature, displacement, speed, acceleration, etc. measuring.

NE-SA01
Adapt sensor Strain sensor
Supply voltage ±3V (or 6V)
Input differential signal ±9mV~±18mV
output signal ±5V (±10V optional)
Supply voltage 12VDC (6.5V~30V wide voltage)
Power consumption About 0.5W
Dimensions 37mmx37mmx96mm
Weight About 100g
