Steering wheel steering force angle detector

The steering wheel steering force angle detector is also the steering characteristic test. It is an intelligent test system with TAV-8X50 steering wheel torque angle sensor and VEM-5 test recorder as the core. It can complete long-term continuous recording test of steering parameters, waveform display and Data online printing.

Pilot projects

●Auto steering portability test (GBT6323-2014)

●Vehicle steering system torque and angle test

Measurement parameters

●Vehicle speed, time, distance, steering wheel torque, turning angle, angular velocity, etc.

Main feature

●Built-in strain amplifier and precise excitation voltage

●Double pulse signal with anti-shake function

●High-contrast display color scheme is adopted for outdoor use

●The force measurement steering wheel steering force angle detector supports U disk data recording, which is convenient for the use of microcomputer to analyze the data

●The force measurement steering wheel steering angle detector adopts an optimized operation interface, which is simple and convenient to operate, suitable for vehicle applications

●Can be equipped with GPS vehicle speed sensor, and complete vehicle speed and distance measurement at the same time

●Using a rotary encoder to detect the steering angle, no temperature drift, no limit on the number of turns

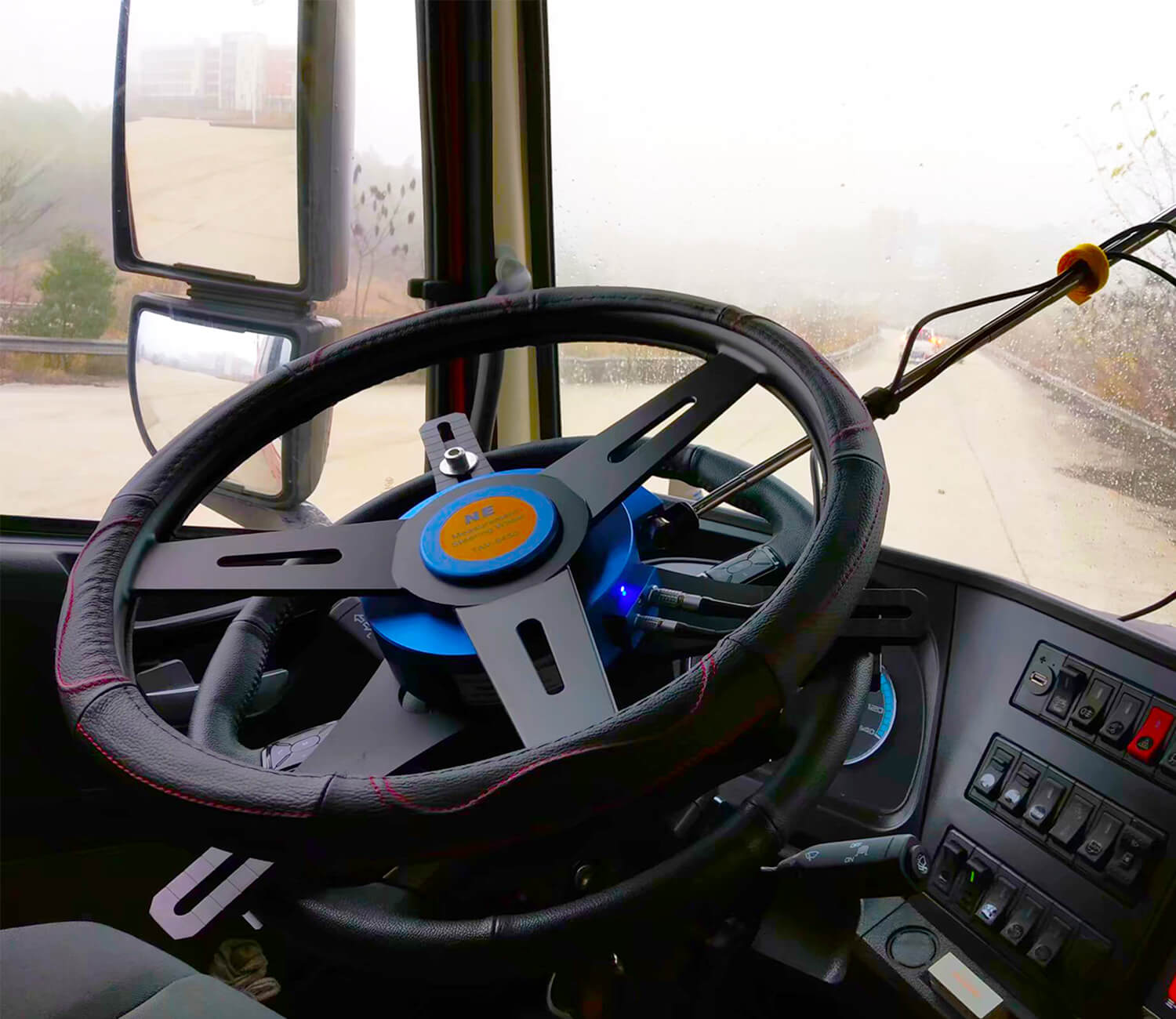

●Spline connection or claw installation (no need to dismantle the original steering wheel)

●Using ARM9 microprocessor, WinCE operating system, supporting data display, recording terminal, touch screen operation, graphic display, convenient operation and high reliability

•

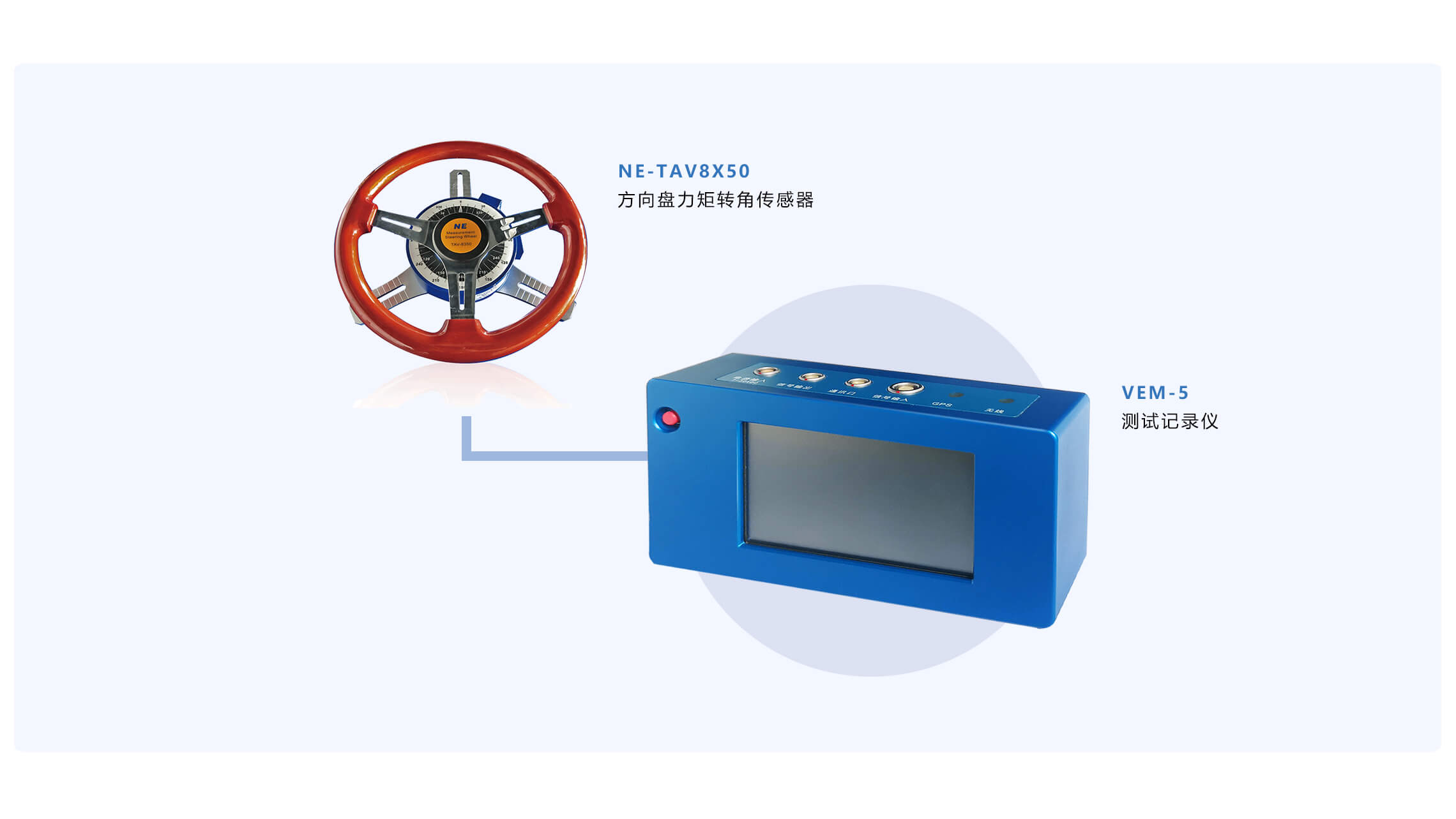

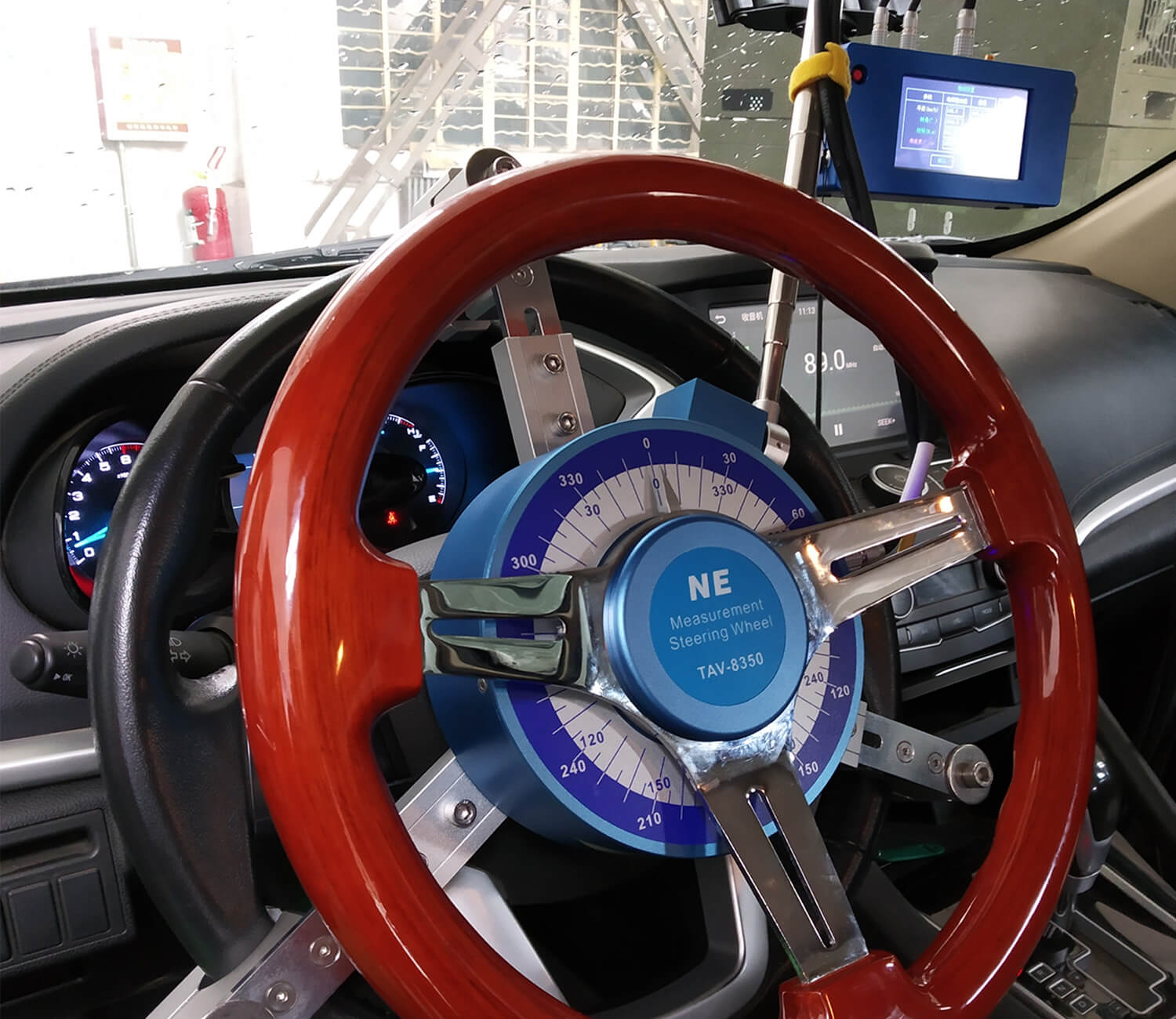

  System configuration of steering force angle detector for force measuring steering wheel

  ●Steering wheel torque and angle sensor: TAV-8X50

  ●VEM-5 Test Recorder

  ●Test lithium battery: H32 (optional)

  ●Accessories: signal line, power line, GPS antenna

  ●Instrument storage box: NE-BOX8350

  ●Retractable adapter

  ●Angle reference rod
