VEM-5R dual antenna RTK data acquisition recorder

Description
Technical index

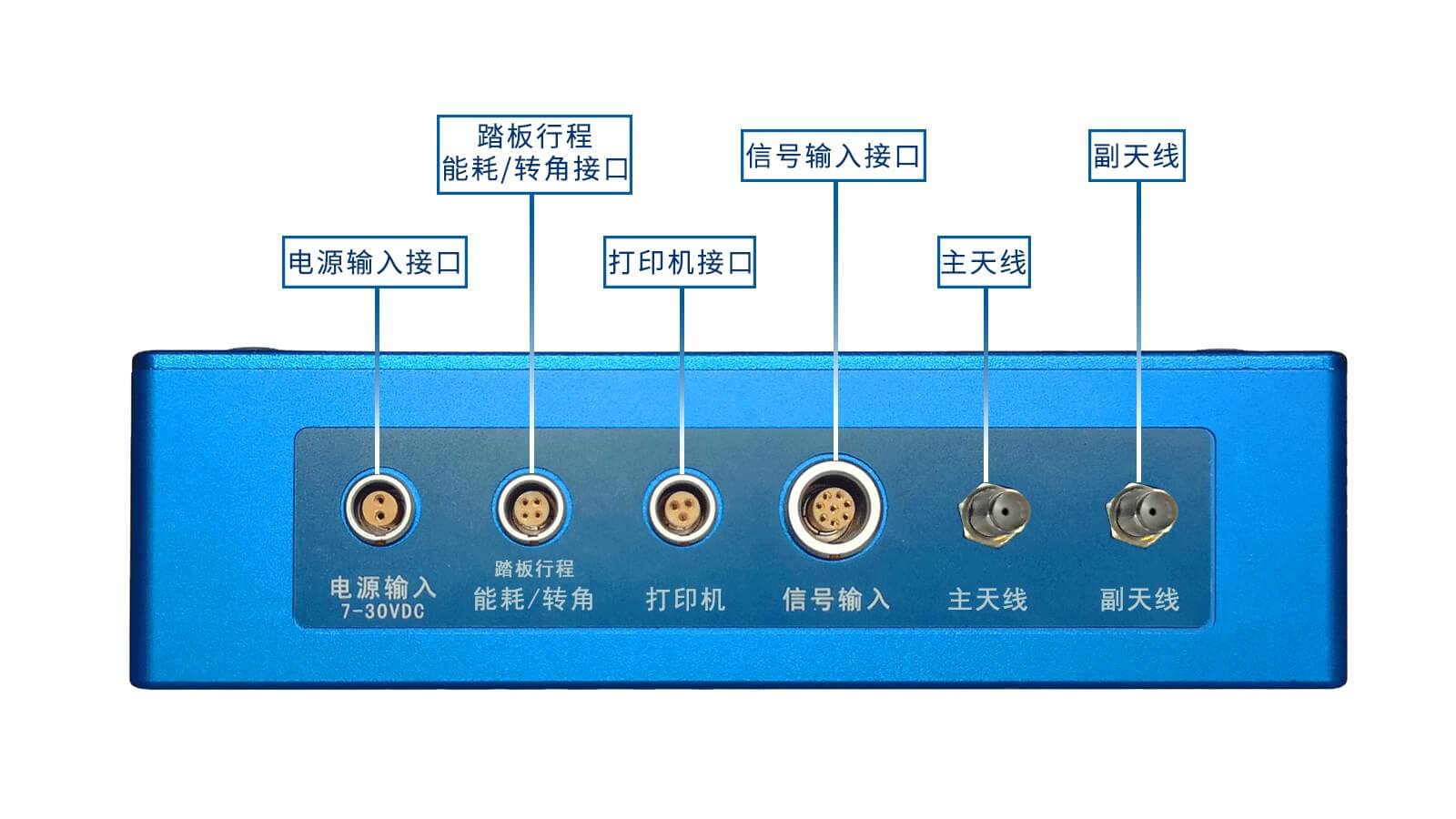

Interface

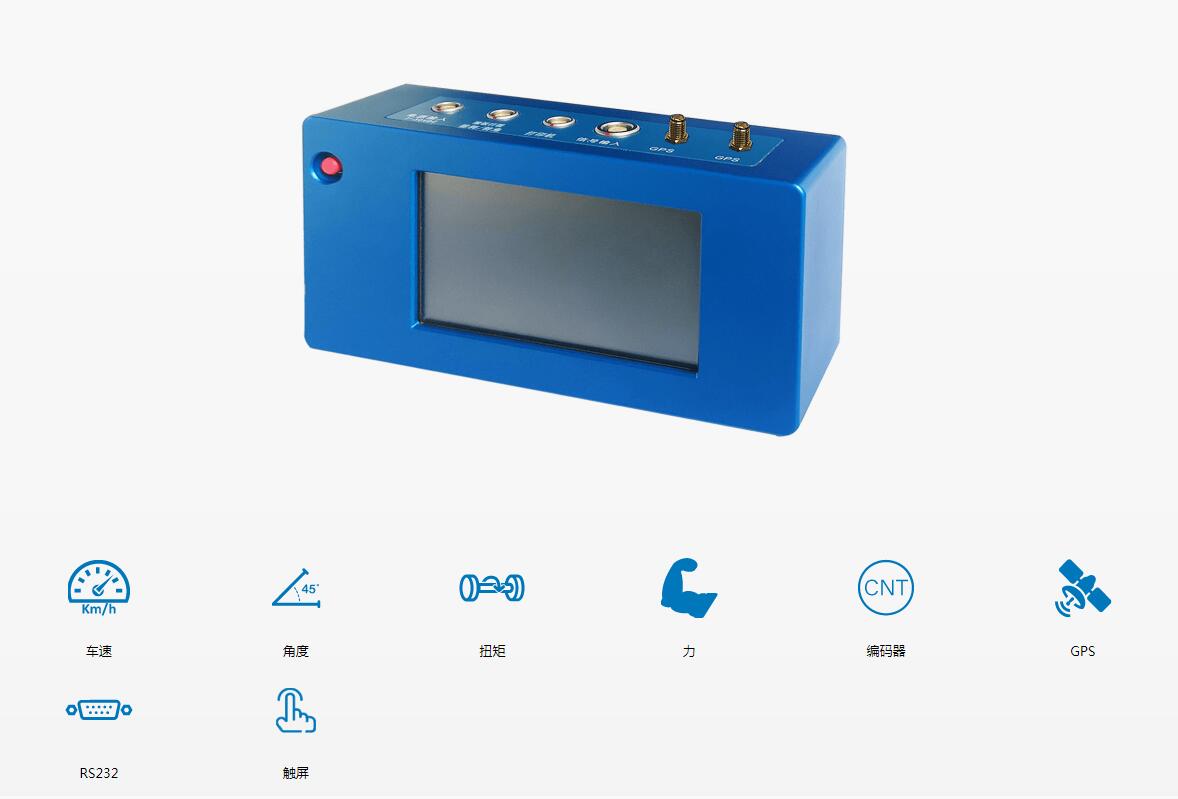

The VEM-5R dual-antenna RTK data acquisition recorder is an intelligent vehicle performance test equipment with a differential GPS test system. The main features of this equipment are speed measurement and high ranging accuracy. It can complete vehicle speed test records and steering wheel steering parameter test records. , Fuel consumption (gas consumption, electricity consumption) test records and other tests.

Main feature:

●VEM-5R dual antenna RTK data acquisition recorder 5 inches industrial touch screen operation

●Continuous storage of test data U disk

●GPS dual antenna RTK test system, update rate 100Hz

●The test results are automatically printed on site or printed afterwards (optional micro printer)

●Automatic condition triggering and ending of the test process, supporting manual operation

●The start and end of the test have a voice prompt function

●VEM-5R dual-antenna RTK data acquisition recorder is small in size and easy to carry. It can be attached to the front windshield of the car through a suction cup for easy testing

Measurement parameters:

●Vehicle speed, time, distance, pedal force, fuel consumption, steering wheel angle, torque, angular velocity, etc.

Speed Range: 0-720km/h; accuracy: ±0.05km/h; resolution: 0.01 km/h

Time Range: unlimited; accuracy: ±1ms; resolution: 1ms

Distance Range: unlimited; accuracy: ±2cm; resolution: 4mm

Data update rate 1~100Hz

GPS original update frequency 100Hz, dual antenna RTK function

Analog input 1CH, 24-bit precision, built-in programmable amplifier, strain signal input

Speed channel 1CH, built-in high-precision measurement GPS/BD speed measurement module

Frequency measurement/counting channel 1CH, built-in power supply, support single pulse and quadrature double pulse input

Digital trigger 1CH, can be connected to the brake trigger switch

RS232 1CH, can communicate with external equipment

Micro-printing (optional) Printing paper 50mm

power input 12VDC (7~30V wide voltage)

Power consumption About 7W

Dimensions LWH 172x88x47mm

Weight About 656g

Speed	Range: 0-720km/h; accuracy: ±0.05km/h; resolution: 0.01 km/h
Time	Range: unlimited; accuracy: ±1ms; resolution: 1ms
Distance	Range: unlimited; accuracy: ±2cm; resolution: 4mm
Data update rate	1~100Hz
GPS original update frequency	100Hz, dual antenna RTK function
Analog input	1CH, 24-bit precision, built-in programmable amplifier, strain signal input
Speed channel	1CH, built-in high-precision measurement GPS/BD speed measurement module
Frequency measurement/counting channel	1CH, built-in power supply, support single pulse and quadrature double pulse input
Digital trigger	1CH, can be connected to the brake trigger switch
RS232	1CH, can communicate with external equipment
Micro-printing (optional)	Printing paper 50mm
power input	12VDC (7~30V wide voltage)
Power consumption	About 7W
Dimensions LWH	172x88x47mm
Weight	About 656g
