VEM-5S single antenna test recorder

Description
Technical index

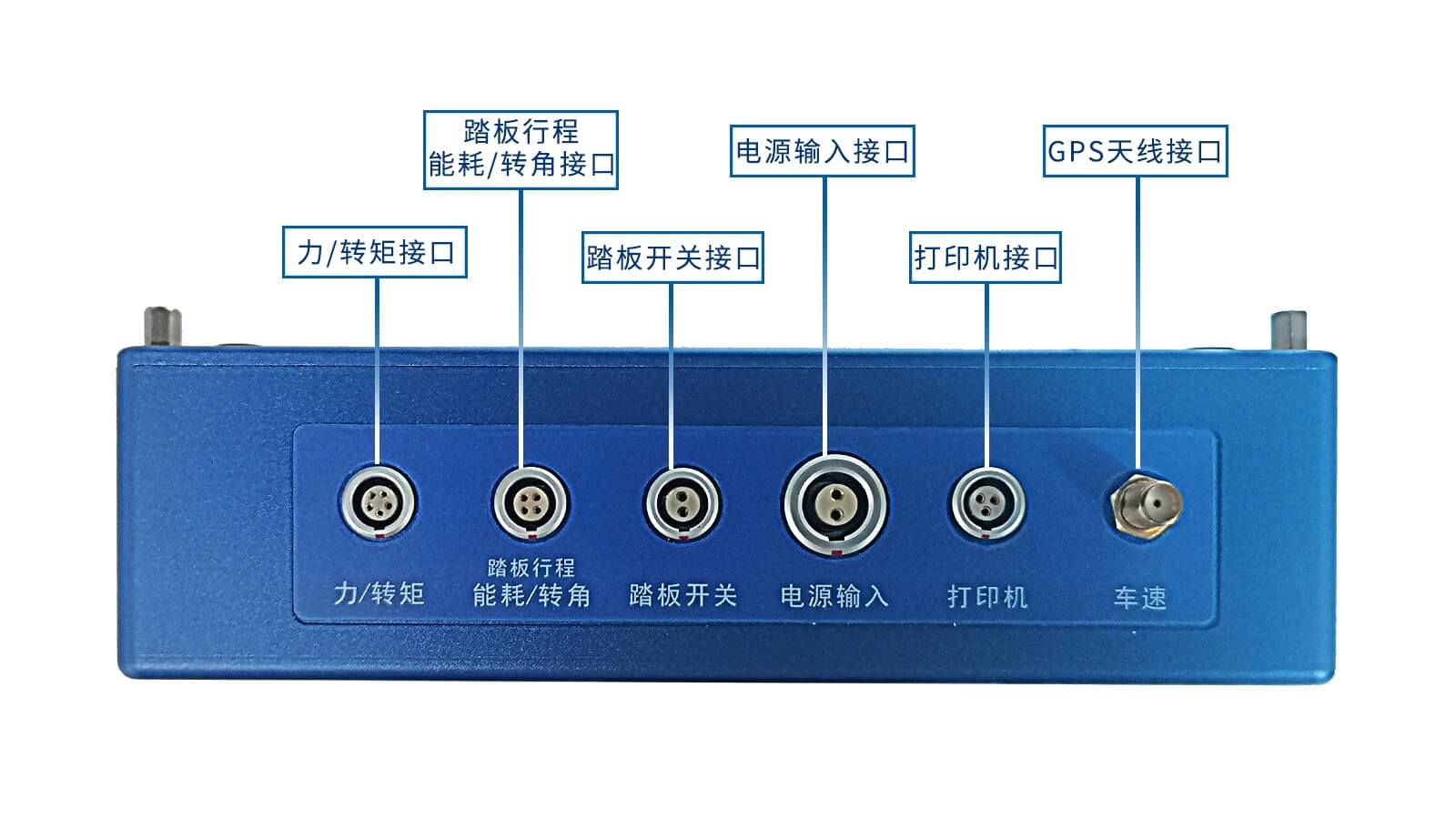

Interface

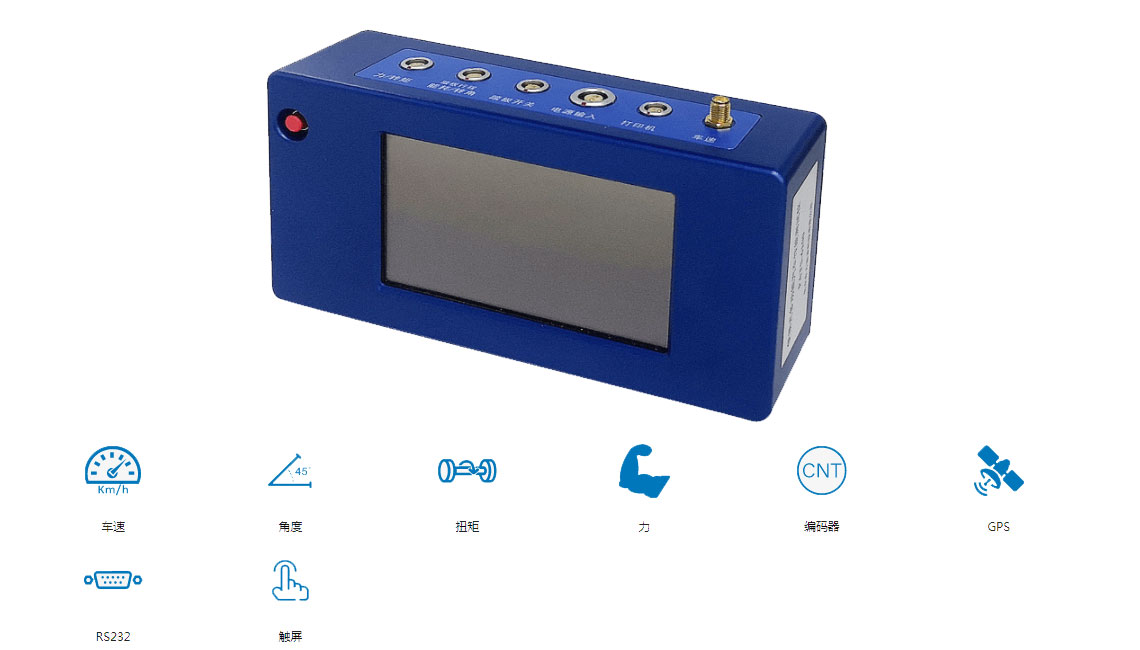

VEM-5S single antenna test recorder is a portable intelligent test equipment designed with high-speed MCU as the core. It has touch display function and can be used for vehicle speed test record, steering wheel steering parameter test record, fuel consumption (gas consumption, electricity consumption) test Records etc.

Main feature:

●5 inch industrial touch screen operation

●VEM-5S single antenna test recorder test data U disk continuous storage

●The test results are automatically printed on site or printed afterwards (optional micro printer)

●VEM-5S single antenna test recorder automatically triggers and ends the test process, supports manual operation

●The start and end of the test have a voice prompt function

●GPS single antenna speed measurement system, update rate optional 20Hz or 100Hz

Measurement parameters:

●Vehicle speed, time, distance, pedal force, fuel consumption, steering wheel angle, torque, angular velocity, etc.

VEM-5S single antenna test Recorder technical indicators

Speed	Range: 0-720km/h; accuracy: ±0.1 km/h; resolution: 0.01 km/h
Time	Range: unlimited; accuracy: ±1ms; resolution: 1ms
Distance	Range: unlimited; accuracy: ±2cm; resolution: 4mm
Data update rate	1~100Hz
GPS original update frequency	20Hz, 100Hz optional
Analog input	1CH, 24-bit precision, built-in programmable amplifier, strain signal input
Speed channel	1CH, built-in high-precision measurement GPS/BD speed measurement module
Frequency measurement/counting channel	1CH, built-in power supply, support single pulse and quadrature double pulse input
Digital trigger	1CH, can be connected to the brake trigger switch
RS232	1CH, can communicate with external equipment
Micro-printing (optional)	Printing paper 50mm
power input	12VDC (7~30V wide voltage)
Power consumption	About 7W
Dimensions LWH	172x88x47mm
Weight	About 656g
