Electronic gyroscope

Description
Technical index
Application

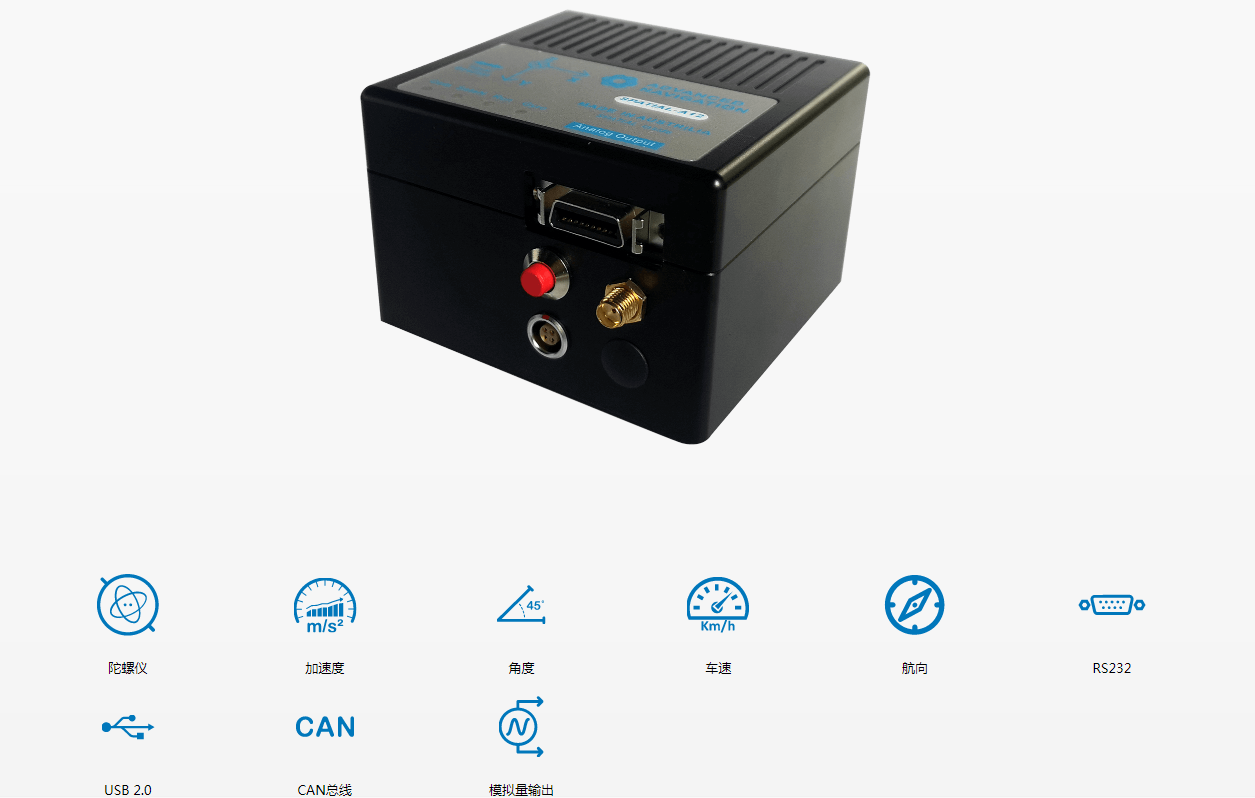

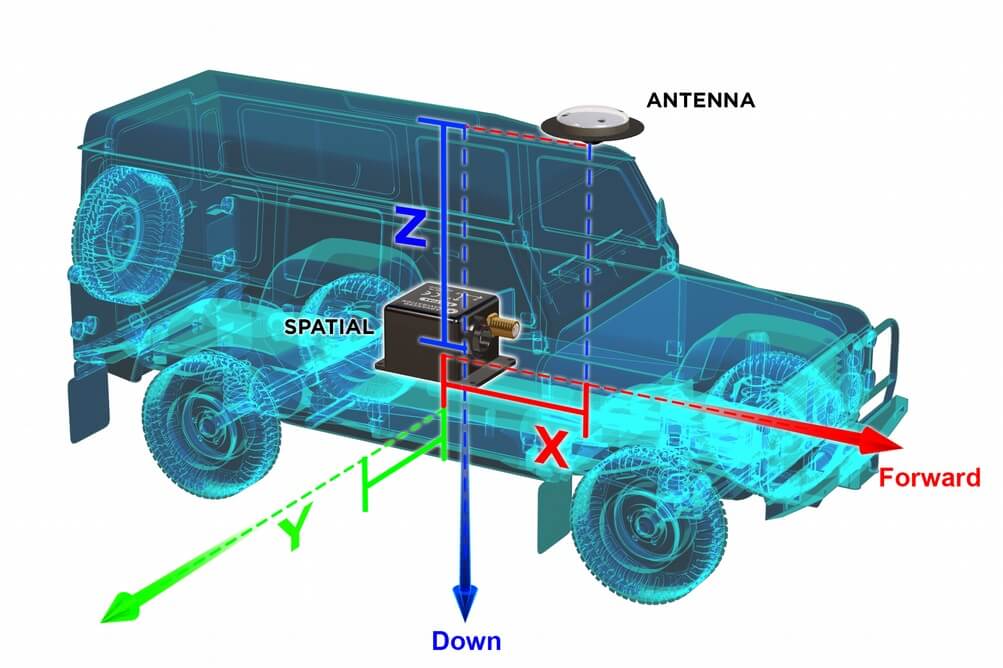

The electronic gyroscope is an inertial navigation system assisted by GPS, which is highly integrated with temperature-compensated MEMS accelerometer, gyroscope, magnetometer, barometer and GNSS receiver. It can simultaneously output attitude angles such as roll angle, acceleration, angular rate, and vehicle speed signals. The gyroscope is used for handling and stability testing, lateral stability testing and other attitude testing.

Main feature:

●With GNSS (Global Navigation Satellite System) assisted attitude measurement

●Wide range temperature compensation

●High reliability, strong adaptability to complex environments

●Special data fusion algorithm for vehicle road test

●Built-in magnetic field interference suppression algorithm

●The hot start speed is fast

●High update frequency

●Support RTK, significantly improve test accuracy

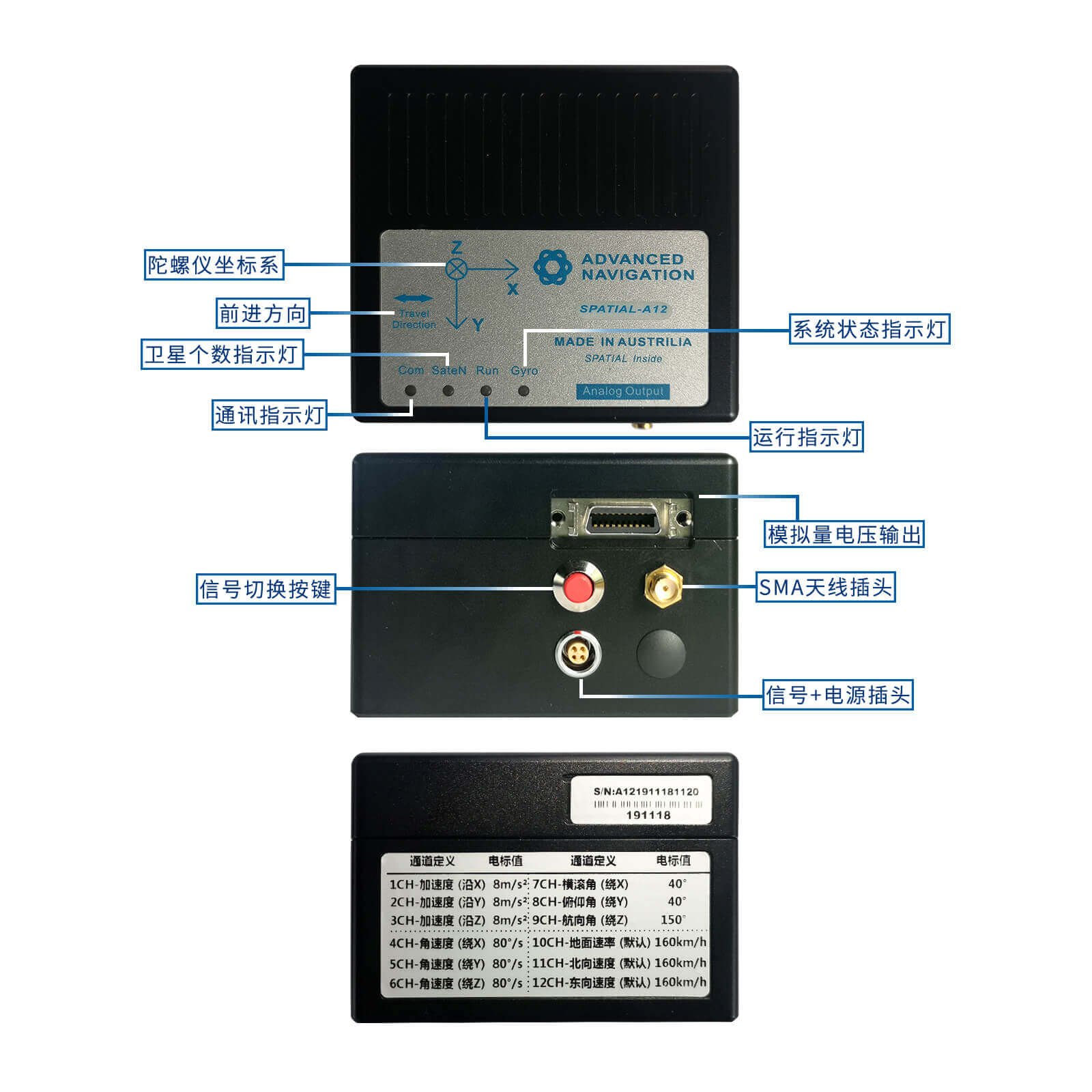

电子陀螺仪

Data download

		SPATIAL-A12	NE-GYRO3
Angular velocity measurement
Range		±500°/s(250,500,2000optional)	±500°/s(250,500,2000optional)
nonlinear		±0.05%	±0.2%
Acceleration measurement
Range		±4g(2g,4g,16goptional)	±4g(2g,4g,16goptional)
non-linear		±0.05%	±0.05%
Angle measurement
roll angle		Range:±90°; Precision:±0.1°	Range:±90°; Precision:±0.6°
Pitch angle		Range:±90°; Precision:±0.1°	Range:±90°; Precision:±0.6°
Heading angle		Range:0～360°;Accuracy:±0.2°	Range:0～360°;Accuracy:±0.6°
Magnetic field measurement
Range		±8G	±8G
nonlinear		±0.08%	±0.1%
Navigation parameters
Update frequency		10Hz	10Hz
Speed measurement range		0.5-720km/h	0.5-720km/h
Speed accuracy		0.05m/s	0.1m/s
Horizontal position accuracy		2m(RTK 0.02m)	2.5m CEP
Vertical position accuracy		3m(RTK 0.03m)	2.5m CEP
Place of Origin
Place of Origin		Australia	China
other
Update rate		100Hz	50Hz
Hot start time		500ms	500ms
MTBF		310000hrs	50000hrs
Vibration resistance limit		2000g	2000g
Working power		9~30VDC, power consumption is about6W	9~30VDC, power consumption is about6W
Working environment		Temperature:-40~85℃; Humidity:10%~90%RH(No condensation)< span style="font-size:11.0pt;font-family:" color:#555555;"="">	Temperature:-40~85℃; Humidity:10%~90%RH(No condensation)< span style="font-size:11.0pt;font-family:" color:#555555;"="">
weight		About240g	About240g
Output interface		Voltage output:10CH,±5V	Voltage output:10CH,±5V
Output interface		Communication output:RS232orRS422	Communication output:RS232orRS422
Status indication		Communication instructions, number of satellites, working status	Communication instructions, number of satellites, working status
DimensionsLWH		84x80x57mm	84x80x57mm
High-end products
High-end products
	MOTUS-LIC-A12	RT3100	INS-B-G450-A8
Angular velocity measurement
Range	±475°/s	±100°/s	±450°/s
Offset	±0.03%	0.05°/s	±1°/s
Acceleration measurement
Range	±5g	±10g	±8g
non-linear	±0.05%	±0.01%	±0.005mg
Angle measurement
Later angle	Range:±90°; Precision:±0.03°	Range:±90°; Precision:±0.05°	Range:±90°; Precision:±0.1°
Pitch angle	Range:±90°; Precision:±0.03°	Range:±90°; Precision:±0.05°	Range:±90°; Precision:±0.1°
Heading angle	Range:0～360°;Accuracy:±0.1°	Range:0～360°;Accuracy:±0.1°	Range:0～360°;Accuracy:±0.1°
Magnetic field measurement
Range	±8G	±8G	±8G
nonlinear	±0.08%	±0.08%	4nt,rms
Navigation parameters
Update frequency	20Hz	20Hz	20Hz
Speed measurement range	0.5-720km/h	0.5-720km/h	0.5-720km/h
Speed accuracy	0.007m/s	0.007m/s	0.03m/s
Horizontal position accuracy	0.8m(RTK 0.008m)	0.8m(RTK 0.008m)	1.2m(RTK 0.01m)
Vertical position accuracy	1.5m(RTK 0.015m)	1.5m(RTK 0.015m)	1.0m(RTK 0.02m)
Place of Origin
Place of Origin	Australia	United KingdomOXTS	United States
other
Update rate	100Hz	100Hz	100Hz
Hot start time	2s	2s	500ms
MTBF	200000hrs	200000hrs	55500hrs
Vibration resistance limit	2000g	2000g	2000g
Working power	5~36VDC, power consumption is about1W	5~36VDC, power consumption is about1W	9~36VDC, power consumption is about3W
Working environment	Temperature:-40~85℃	Temperature:-40~85℃	Temperature:-40~70℃
Working environment	Humidity:10%~90%RH(No condensation) span>	Humidity:10%~90%RH(No condensation) span>	Humidity:10%~90%RH(No condensation) span>
weight	About72g	About72g	About220g
Output interface	Voltage output:10CH,±5V	Voltage output:10CH,±5V	Voltage output:10CH,±5V
Output interface	Communication output:RS232orRS422	Communication output:RS232orCAN	Communication output:RS232orRS422
Status indication	Communication instructions, number of satellites, working status	Communication instructions, number of satellites, working status	Communication instructions, number of satellites, working status
DimensionsLWH	67x42x30mm	67x42x30mm	120 x50 x53mm
