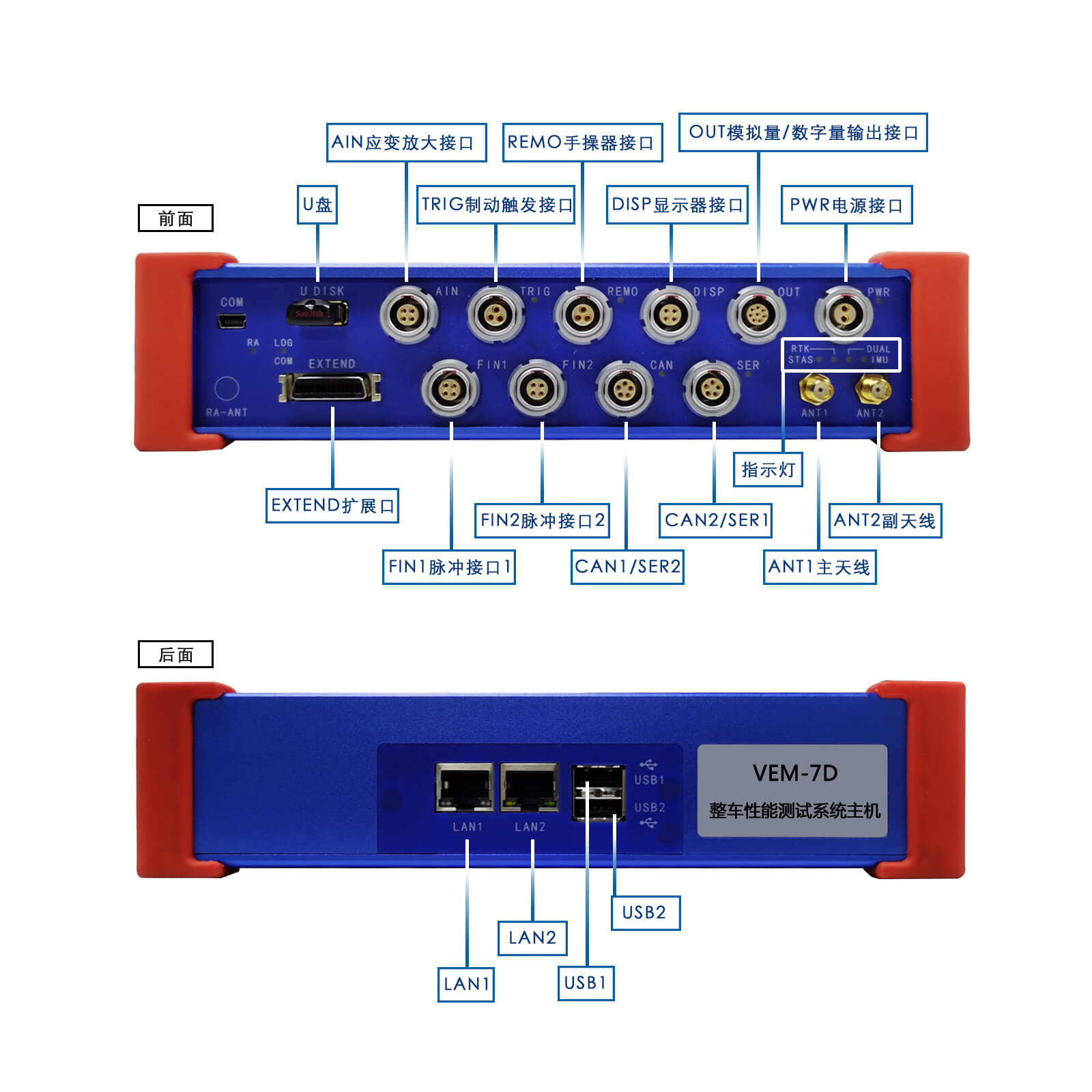

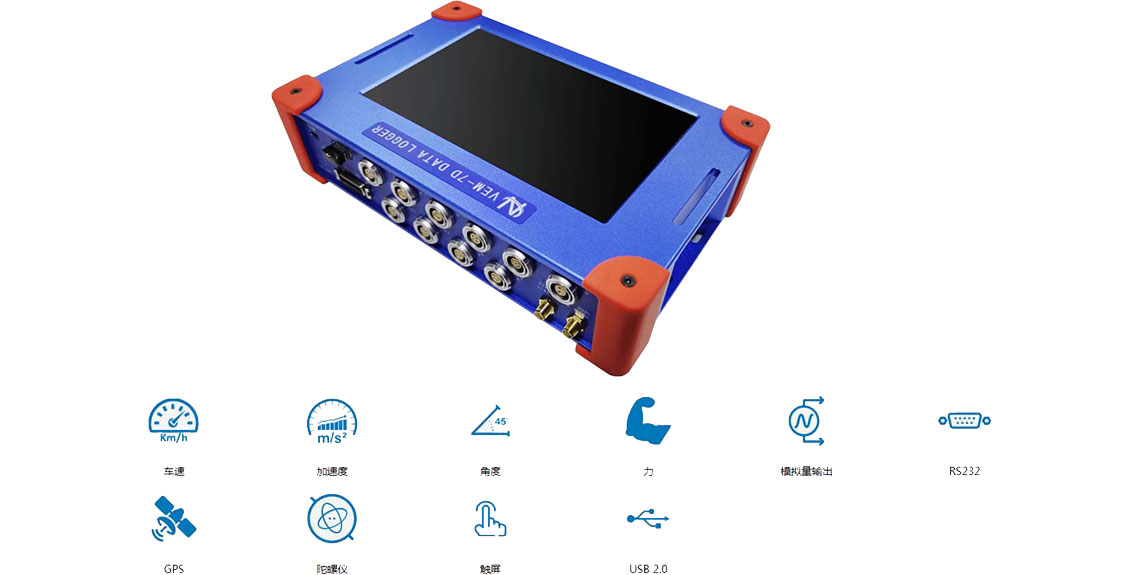

VEM-7D dual antenna test host

VEM-7D dual-antenna test host is a multi-functional vehicle performance test equipment with dual-antenna system and capable of measuring heading angle. It integrates data collection, processing and analysis, and touch display. It has high speed test accuracy, simple operation, and data processing. Convenient and fast, compact structure, easy to carry and other advantages. The following tests can be completed in accordance with the requirements of the national standard:

(1) Power performance, economy, braking performance, odometer calibration, steep climbing, traction performance test, etc.;

(2) 7 tests of handling stability specified in GB/T6323-2014;

(3) The steady state circle test, steady state rotation test and serpentine test specified by JTT1178.1-2018;

(4) JTT1178.2-2018 specified steady-state circle, steady-state rotation, serpentine, maximum swing and rear amplification factor test;

(5) Ride comfort test (need to connect vibration measurement module);

(6) Damping ratio and natural frequency test (need to connect vibration measurement module);

(7) ABS test (need to connect frequency module and analog module).

Main feature:

●U disk storage of raw data

●GPS dual antenna test system, high test accuracy

●7-inch industrial touch screen operation, no computer is required during the test

●The start and end of the test have a voice prompt function

●vehicle speed test, GPS update rate optional 20Hz, 100Hz optional

●VEM-7D dual-antenna test host performs real-time data processing on site after the end of the test

●The test results are automatically printed on site or printed afterwards (optional micro printer)

●PC software supports importing raw data for analysis and generating test reports

●Automatic condition triggering and ending of the test process, supporting manual operation

●Snake test, support manual trigger and automatic trigger (optional trigger), fast and efficient test

Measurement parameters:

●Vehicle speed, lateral acceleration, forward acceleration, yaw rate, body roll angle, body pitch angle, steering wheel angle, steering wheel torque, distance, fuel consumption, MFDD, pedal force, traction, engine speed, etc.
